Generac® Generator Remote Monitoring Solutions
Reliable, Remote-Ready Monitoring for Generac Fleets & Gensets
Monico Monitoring delivers turnkey solutions for Generac® generator monitoring, providing real-time visibility into critical backup power systems—both onsite and remotely. Whether your facility uses a single generator or multiple paralleled gensets, our systems allow seamless data access, flexible integration, and fast deployment.

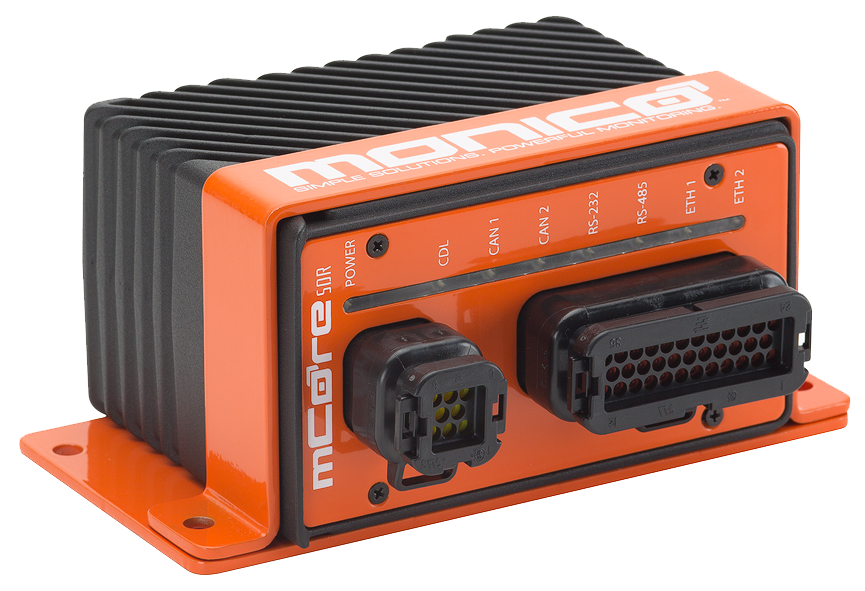

From data centers and hospitals to telecom towers and mission-critical infrastructure, Generac® users rely on Monico to ensure their backup power is ready when it matters most. Our flagship mCore® SDR communicates directly with supported Generac® control panels and makes it easy to integrate generator data with BMS, DCIM, SCADA, and other monitoring platforms using supported industrial protocols such as Modbus, SNMP, BACnet, and others.
- Monitor multiple Generac® gensets with a single mCore® SDR
- Compatible with H100, G-Panel, PM-DCP, and PM-SC panels
- Supports Modbus RTU communication
- Built-in web-based UI accessible via any browser

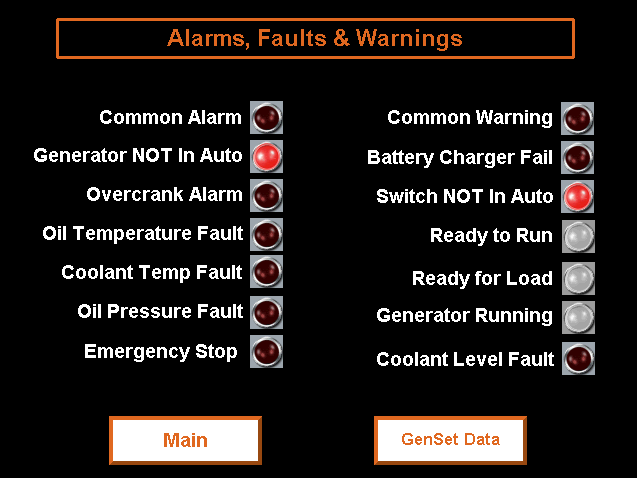

- Pre-loaded alarm descriptions and diagnostic codes
- Remote Start/Stop functionality available for generators and controllers that support this capability
- NFPA 110 reporting integration capability
Monitoring Support for Generac Control Panels
H100 Control Panel

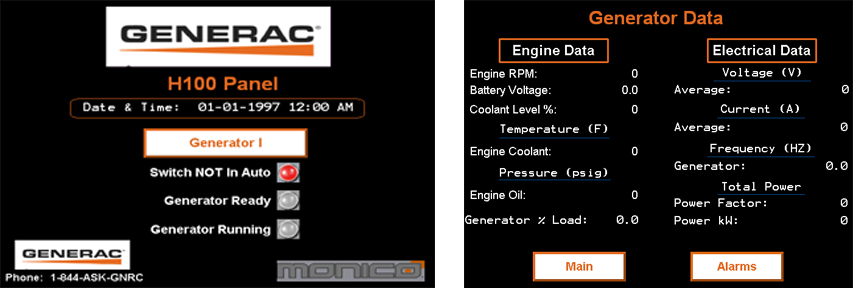

Ideal for telecom and remote site applications, the mCore® SDR connects directly to H100-equipped gensets, delivering live status, alarm codes, and remote control functions. SNMP and the built-in web-based interface provide convenient access to generator health and operating information, while supported applications can also enable remote control functions such as generator Start/Stop.
G-Panel and PM-SC Paralleling
For advanced paralleling systems using G-Panel controllers and the PM-SC (PowerManager™ System Controller), a single mCore® SDR can monitor multiple generators and the central PM-SC panel. Data can be accessed via SNMP or visualized remotely through the device’s integrated browser-based interface.
PM-DCP Panel
The mCore® SDR can be configured for paralleled gensets, bi-fuel engines, and stand-alone transfer switches. Data is collected, standardized, and made available across multiple protocols — ideal for complex BMS or SCADA integration.
Built for Integration & Remote Access
The mCore® SDR doesn’t just collect data — it helps you use it. Whether you need basic generator status or full infrastructure visibility, the platform offers:
- Web-Based User Interface – Access generator data via any Chrome® or modern browser by IP address, with no software installation required
- Data Logging & Buffering – Real-time logging with onboard data buffering to help protect data capture during inconsistent or interrupted network connections
- Alarm & Event Logic – Configure alarm conditions, output triggers, threshold monitoring, and event-based actions at the edge
- Protocol Conversion – Output to Modbus RTU/TCP, SNMP, BACnet, MQTT, OPC UA, and 100+ additional protocols
- Edge Analytics – Onboard computing power for real-time analytics, threshold monitoring, and conditional logic
- Cloud Integration – Native support for MonicoLive™, MQTT brokers, Azure, and AWS IoT
The mCore® SDR is housed in a rugged IP66/IP67-rated, Class I Div II-certified enclosure, ready for installation by any qualified technician.
Applications
Generac® Generator Remote Monitoring Systems For:
Future-proof your monitoring system
Looking to Remotely Monitor Your Generac® Engine or Generator?
Gain real-time visibility, advanced control, and scalable data infrastructure, all from a single, rugged solution. The mCore® SDR is Monico’s next-generation smart gateway; an all-in-one device that unifies protocol conversion, edge analytics, and remote connectivity. Built for industrial environments, it offers flexible I/O, onboard processing, and seamless integration with MonicoLive™ or your preferred cloud platform. The MonicoLive platform with mCore SDR data acquisition creates a powerful remote monitoring system with real-time alerts and notifications, customized dashboards and advanced data visualization, and NFPA 110 integration capability, critical for generator monitoring systems.
FAQs
Frequently Asked Questions
Which Generac panels are compatible with Monico’s remote monitoring system?
The mCore® SDR is compatible with H100, G-Panel, PM-DCP, and PM-SC control panels. We support both stand-alone and paralleled configurations.
Does the system support SNMP and remote access?
Absolutely. The mCore® SDR supports SNMP and features a web-based user interface that allows access via any browser, including Chrome®. Remote control functions like Start/Stop can also be enabled.
Can I monitor multiple Generac generators with one Gateway?
Yes. A single mCore® SDR can monitor multiple gensets, especially in paralleling scenarios using G-Panel or PM-SC controllers.
How do I configure the Gateway?
Every mCore® SDR ships pre-configured based on your specific application — down to the serial number of each asset — minimizing field configuration and setup. Once connected to the asset, power, and the required network, data can begin flowing. Any field adjustments or customization can be made through the onboard web-based interface, accessible from any browser with no software installation required.
What types of data can I collect from a Generac genset?
Typical monitored data includes generator status, alarms, engine RPM, voltage, frequency, fuel levels, exercise timers, and more. The mCore® SDR also provides full-text descriptions of alarms and diagnostic codes.
