CDL Gateway PLUS™
WHAT IS CDL Gateway PLUS™?
CDL Gateway PLUS for Caterpillar® Remote Monitoring
A flexible device used to collect information from a myriad of devices that use multiple protocols over multiple ports and put all the information in a common format. Features include basic HMI screens over the internet, an SMTP Server, SMS Server, Sync Server and Time Manager.
Because of the wide range of uses of the equipment, many CAT® engines and generators are in remote locations and need the ability of a remote industrial protocol converter and industrial data logger. The CDL Gateway PLUS provides the ability to remotely monitor and control industrial engines, generators, compressors and other equipment from any location. The email server is programmable to send email and SMS alerts to notify personnel of warnings and shutdowns. In addition, data from other devices within your Caterpillar® remote monitoring system can be converted and recorded on the same data map or made accessible through many other protocols through available ports.
The CDL Gateway PLUS™ retains all the communications and industrial protocol converter capabilities of the CDL Gateway™ Basic version, while adding many valuable IP related features including real-time data logging, Mail Server, Sync Server, Time Manager, and Color Touchscreen Virtual HMI. These features serve to increase the value of your Caterpillar® equipment by adding remote monitoring features usually costing much more.
Benefits & Features
- Pre-configured solution that provides basic HMI screens over the internet
- C-UL approved for Class I Div II groups A-D locations
- SMTP Server and SMS Server for email notification of alarms and shutdowns
- Up to 2GB Compact Flash card that will store up to 200 days work of data
- Sync Server to copy data log files with an external server located on the network
- FTP Server to upload data log files from any location on the network
- Time Manager to automatically sync the real-time clock to a server or external source
- Full diagnostic and fault code support with text descriptions
- LED indication lights for communication and power confirmation
Download Datasheet →
More than a Remote Industrial Protocol Converter and Industrial Data Logger
As stated above, the PLUS version of this Gateway takes basic version’s protocol conversion abilities much farther. The real-time industrial data logging feature has proven extremely valuable for troubleshooting tough problems that require continuous real-time data from the engine and connected equipment. The Gateway will accept up to a 2 GB Flash card that can store log files for 80 parameters every three seconds over approximately 200 days. These log files are stored in CSV formats for easy import into Microsoft Excel. The trend and historical data provided by this feature are extremely important for high value industrial equipment to provide high-fidelity troubleshooting history for accurate diagnostics. Even if you have a high bandwidth SCADA system, the on-board industrial data logger can serve as a critical backup in case of communications link failure.
More on Caterpillar® Remote Monitoring
The Virtual HMI Web Server allows remote access to your equipment with Google Chrome. The web pages can be custom built or you can use our pre-configured pages for basic data. Our free MonicoView™ software can be used to create your own custom pages or to modify and customize the factory default pages. All of these features combine to make the PLUS version of the CDL Gateway™ an excellent choice for Caterpillar® remote monitoring needs.
Commonly used industrial protocols such as Allen-Bradley, Modbus, BACnet, SNMP and Siemens Omron and GE PLC memory maps are available as well and many other industrial protocols that are not as widely used.
More Information on Key Features:
- Real-Time Data Logging – Multiple data logs can be implemented with varying timing formats and file structures. Up to a 2 GB Compact Flash memory card can be inserted which is capable of logging approximately 80 parameters every three seconds for 200 days. The logs are stored as CSV files which will import directly into Excel.
- SMTP Email Server – The SMTP Server allows the ability to trigger traditional email messages and text messages upon configurable circumstances.
- Sync Server – This server is programmable to sync the data logging files with a server located on the same network.
- FTP Server – This server will allow a user to transfer the log files automatically from a remote network.
- OPC Proxy – This server allows a common server to poll data from multiple protocols under one system.
- Time Manager – The Time Manager syncs the onboard real-time clock with a server standard or an internet standard clock. This is particularly useful when data logging.
- Virtual HMI Web Server – The built-in web server allows remote monitoring and control of an engine from a remote location using only a web browser. Security features are built-in to prevent unauthorized access. Standard Web Server screens are supplied or custom web pages may be created using our free MonicoView™ software.

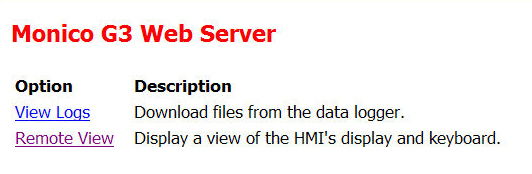

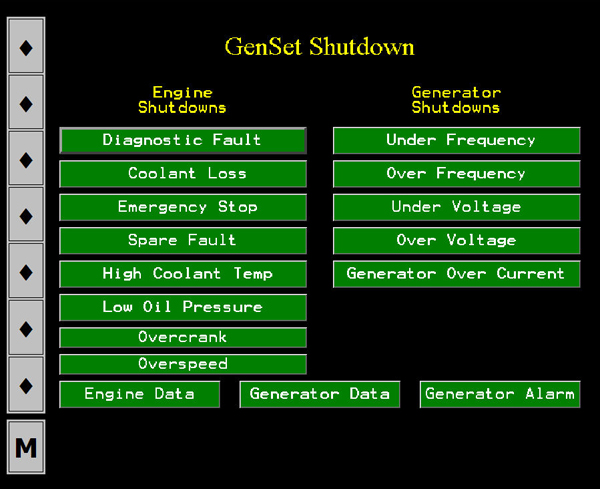

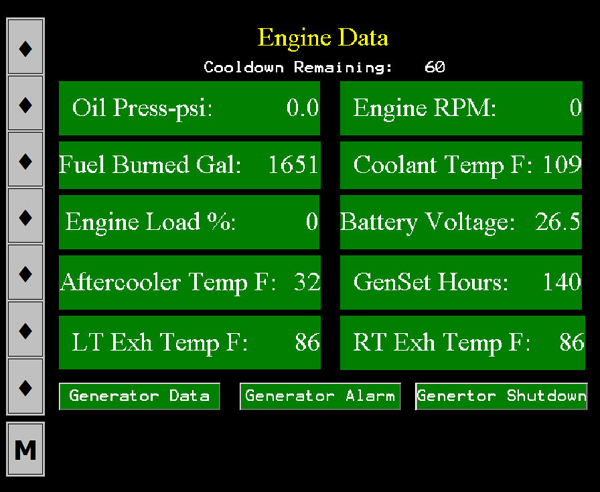

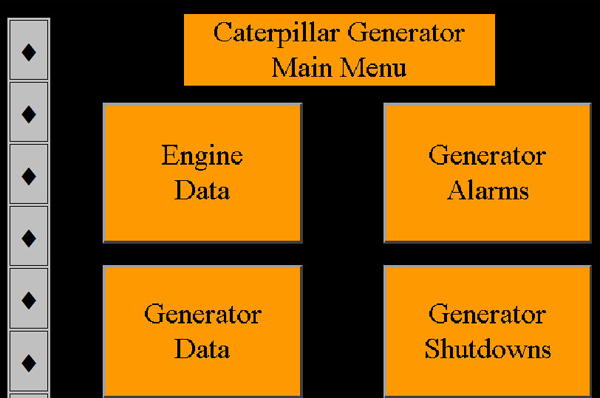

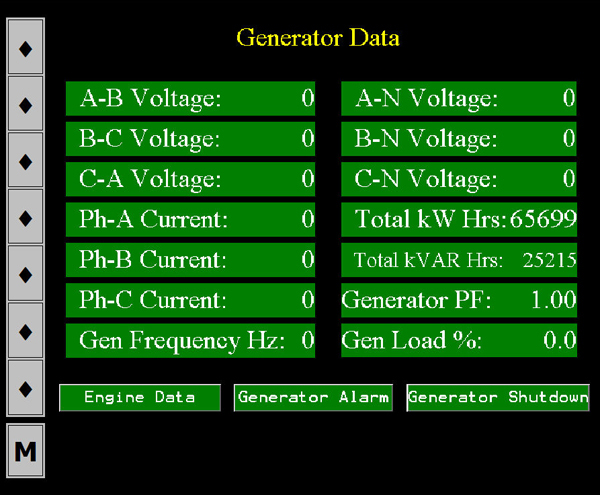

Screen Shots:
Future-proof your monitoring system
Looking for the Next Generation of Industrial Monitoring?
Monico’s mCore® SDR is the powerful evolution of our trusted gateway technology — combining protocol conversion, edge processing, and remote connectivity in one intelligent device. With onboard analytics, flexible I/O, and seamless integration to the cloud or MonicoLive™, mCore® SDR gives you more visibility, control, and scalability than ever before.
How to Choose The Right Gateway
Monico Gateway Product Comparison – Gateways vs. mCore® SDR
| Feature / Use Case | CDL Gateway™ |  CPC Gateway™ |  J1939 Gateway™ |  EMCP 3 & 4 Gateway™ |  mCore® SDR |
|---|---|---|---|---|---|
| Primary Use | Monitoring Caterpillar® engines/gensets via CDL | Multi-device protocol conversion for varied industrial systems | Monitoring J1939 CAN-based engines and mobile equipment | Caterpillar® EMCP 3 & EMCP 4 controller data acquisition | Edge data acquisition, protocol conversion, analytics, and remote connectivity |
| Supported Protocols | CDL (Cat Data Link) + selected outputs | 100+ protocols (Modbus, Siemens, BACnet, DeviceNet, etc.) | J1939 + supported outputs | Proprietary EMCP 3.x and EMCP 4.x protocols + Modbus, Ethernet/IP, etc. | 100+ protocols (Modbus, Ethernet/IP, MQTT, OPC UA, BACnet, etc.) |
| Automatic Equipment Detection | ✔ Yes | ✔ Yes | ✔ Yes | ✔ Yes | ✔ Yes |
| Edge Processing / Local Analytics | ❌ No | ❌ No | ❌ No | ❌ No | ✔ Yes – built-in logic engine, thresholding, event handling |
| Cloud Connectivity | ❌ Requires integration | ❌ Requires integration | ❌ Requires integration | ❌ Requires integration | ✔ Yes – native support for MonicoLive™, MQTT, Azure, etc. |
| Pre-configured Parameters | 400+ CDL registers | 400+ across multiple protocols | 100+ J1939 parameters | Pre-mapped EMCP 3 & 4 data points | ✔ Preloaded templates + customizable mapping |
| Real-Time Data Polling Speed | 20–60 parameters/sec | 20–60 parameters/sec | ~20 parameters/sec | Moderate polling speed depending on controller model | ✔ High-speed, multi-threaded polling |
| Custom Logic & Alerting | ❌ No | ❌ No | ❌ No | ❌ No | ✔ Yes – programmable alerts, conditions, and data-driven actions |
| USB Interface for Diagnostics | ✔ Yes | ✔ Yes | ✔ Yes | ✔ Yes | ✔ Yes |
| Built-in I/O Capability | Optional modules | Optional modules | Optional modules | Limited or none | ✔ Native I/O: analog, digital, RTD, thermocouple, relay options |
| Ideal Equipment Type | CAT® engines, gensets (EMCP, 3400, 3500, etc.) | Engines, PLCs, drives, sensors in multi-vendor environments | Mobile equipment with J1939 CAN protocol | CAT® gensets using EMCP 3.x and EMCP 4.x control panels | Any industrial asset requiring smart monitoring, data forwarding, and edge intelligence |
| Simultaneous Protocol Support | 1 input + configurable output | Up to 9 protocols simultaneously | 1 input + configurable output | 1 or 2 protocols | ✔ Multi-protocol support, field + cloud |
| Installation Time | Minutes (plug-and-play) | Fast setup, custom config available | Quick install | Pre-configured, but may require protocol setup | ✔ Easy setup with intuitive tools + remote provisioning |
| Target User | CAT® engine operators | Integrators managing mixed-protocol environments | Fleet owners using J1939 equipment | Operators of CAT® gensets using EMCP controllers | OEMs, industrial operators, and anyone modernizing with edge-to-cloud monitoring |
| Hazardous Location Approval | ✔ Class I, Div II Groups A-D | ✔ Class I, Div II Groups A-D | ✔ Class I, Div II Groups A-D | ✔ Class I, Div II (where applicable) | ✔ Available in hazardous-location rated configurations |
Why Monico
Key advantages that set us apart
Your Data is Yours
Your data is securely collected and stored, always remaining under your control, so you can make informed decisions without concerns about data accessibility or third-party restrictions. We’re here to empower you with the insights you need, not limit how you use your data.
Preconfigured, No Coding Required
Our solutions come preconfigured and ready to deploy without the need for complex coding or development. This plug-and-play approach gets you up and running faster, no coding or data analysis required.
Modern Intuitive Platform
Our platform is designed with you in mind, combining modern functionality with an intuitive interface that simplifies data monitoring and visualization. With Monico, you’ll experience an easy-to-navigate system that makes it simple to access, interpret, and act on your data.
OEM-Agnostic, Multi-Protocol Support
Our gateways are preconfigured for your specific equipment and work seamlessly with most major industrial OEMs. With broad protocol support, they easily integrate into mixed fleets—no custom coding or complex setup required.
EASY AS 1,2,3
The Shortest Path to Real-Time
Actionable Intelligence™
1
Schedule a Demo
We’ll walk you through the process and share examples grounded in real data. No big sales pitch. We’ll discuss the problems you’re trying to solve, identify your needs and address your questions about ROI, security, the implementation process, and more.
2
Let Us Configure Your Solution
We won’t just sell you a gateway and wish you luck. Our powerful solutions are simplified for each customer by being pre-configured, down to the serial number of each asset. You’ll easily access data and gain insights from day one, without struggling with siloed data or differing protocols.
3
Count On Us for Support
Our job isn’t done until implementation is successful and you’re getting data exactly the way you want it, where you want it. We’ll provide installation, training and support. In addition, our online resource library is available 24/7.
FAQs
Frequently Asked Questions
What makes the CDL gateway different from a standard protocol converter?
Unlike basic protocol converters, the CDL Gateway™ comes preloaded with over 400 data parameters, includes automatic engine detection, and provides a full USB user interface for diagnostics and setup. It’s designed to get you up and running in minutes — not hours.
How fast does the CDL Gateway™ pull data?
It collects data at a rate of approximately 20–60 parameters per second, which is up to 15x faster than many alternative solutions on the market.
Can I integrate additional sensor data into the system?
Yes. Optional I/O modules allow you to input data from other systems such as bearing or winding temperatures, fuel levels, digital status signals, and even initiate remote start/stop commands.
Does it support fault codes and diagnostics?
Absolutely. The Gateway offers full fault code support with descriptive text, allowing operators and technicians to quickly diagnose and respond to equipment issues.
What types of Caterpillar® equipment are supported?
The CDL Gateway™ supports a wide range of Caterpillar® engines and gensets, including the 3400, 3500, G3400, G3500, G3600, G3250, GCM34, EMCP II, II+, II+P, ITSM, and ICSM.
How is the CDL Gateway™ configured?
Configuration is simple. The built-in USB interface allows users to view available parameters and adjust settings like IP addresses or port assignments. Monico’s free MonicoView™ software can also be used for deeper customization if needed.
Is this product rated for industrial environments?
Yes. The CDL Gateway™ is C-IL approved for Class I Div II Groups A-D hazardous locations and operates in temperatures from 0–50 °C (operating) and -30 to +70 °C (storage).
Can the CDL Gateway™ connect to my existing control system?
Yes. Whether you’re using PLCs, SCADA systems, or other industrial control equipment, the CDL Gateway™ is designed to integrate seamlessly with your infrastructure using your preferred protocol.
